Witcolor
Ultra 9000

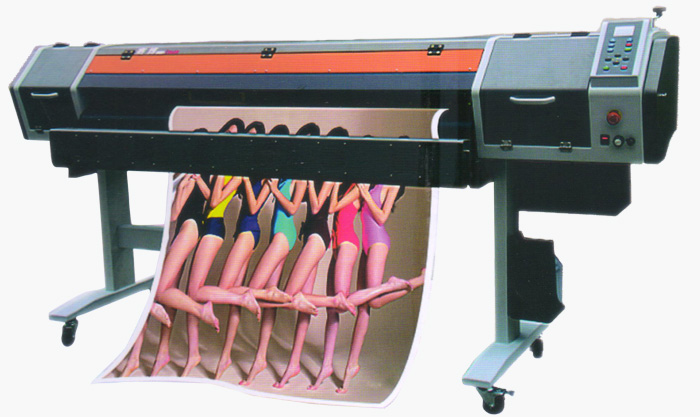

Witcolor Ultra 9000 High Speedr
Adopts two units EPSON DX5 piezoelectrical printhead 8/4 colour optional
1.8m/2.2m/2.6m/3.2m Optional
Special Features:
- Imported linear Rail and finish carriage
- Alloy Double motors printhead maintenance system.
- Multifunctional Feeding system
- Megadyne Belt from Italy
- DSP Servo Motor
Technical Specification
| Model Number | 9000 - 1801s | 9000 - 1802s |
|---|---|---|
| Resolution | 1440dpi | |
| Print Head | Epson DX5 | |
| Printhead Quanity | 1 unit | 2 unit |
| Printing Speed | 3Pass/21m² 4Pass/16m² 6Pass/13m² | 3Pass/42m² 4Pass/32m² 6Pass/26m²Dual CMYK |
| Printing Width | 1.78m | |
| Media Width | 1.80m | |
| Media Heading | Roll to roll Heading | |
| Media Types | Outdoor Eco-solvent based roll media(Flex, Vinyl, Leather, etc) | |
| Inks | Eco-solvent Inks | |
| File Format | Tiff, JPG, EPS, PDF | |
| Workflow | File printing (PRT/PRN/RTL/TIFF/BITMAP) Print image directly from software RIP flying technology known as print while RIPing | |
| RIP | Maintop (Photo print Optional) | |
| Control Station | Windows XP/Vista/Win 7 Professional | |
| Operation Environment | AC 220-240V 50-60HZ Max Poewr Consimption 500W | |
| Tempreture | 10-35°C | |
| Humidityt | 40-60% | |
| Motor | DSP Servo Motor | |
| Linear Rail | HIWIN Linear Rail (Taiwan) | |
| Belt | Megadyne Brand Belt From Italy | |
| Media Feeding & Take-up System | Multi-functional feeding System | |
